Security systems are evolving, and smart access control is no longer reserved for high-end corporate facilities. Whether you’re managing an office, an apartment building, or a commercial warehouse, the Hikvision DS-K1T805MBWX Proximity Reader with Keyboard offers a secure and efficient solution for access control. This article dives deep into its features, connectivity options, design considerations, and real-world advantages to help you determine if it fits your security needs.
Shop Hikvision DS-K1T805MBWX Proximity Reader with Keyboard
What is the Hikvision DS-K1T805MBWX?

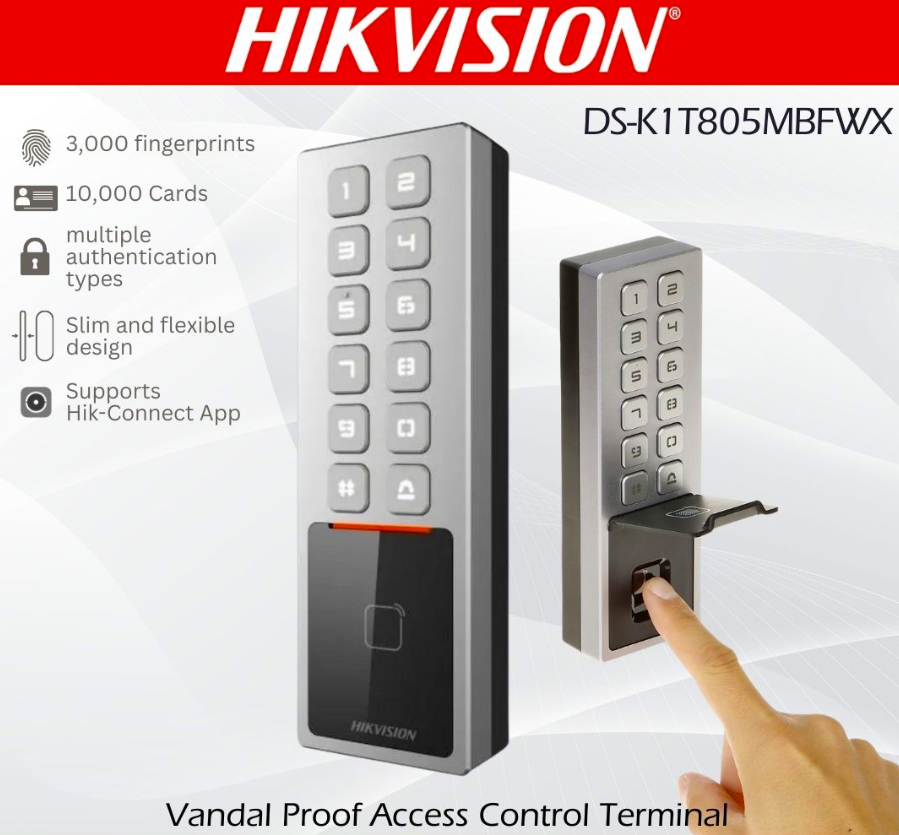

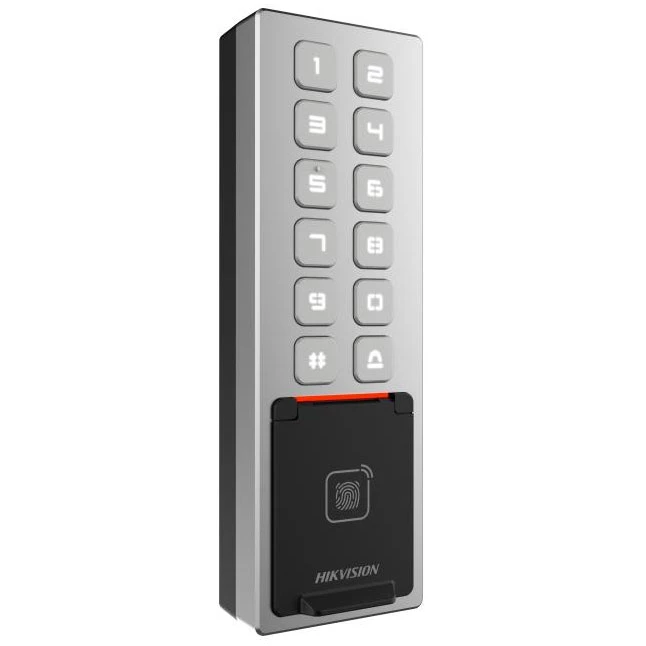

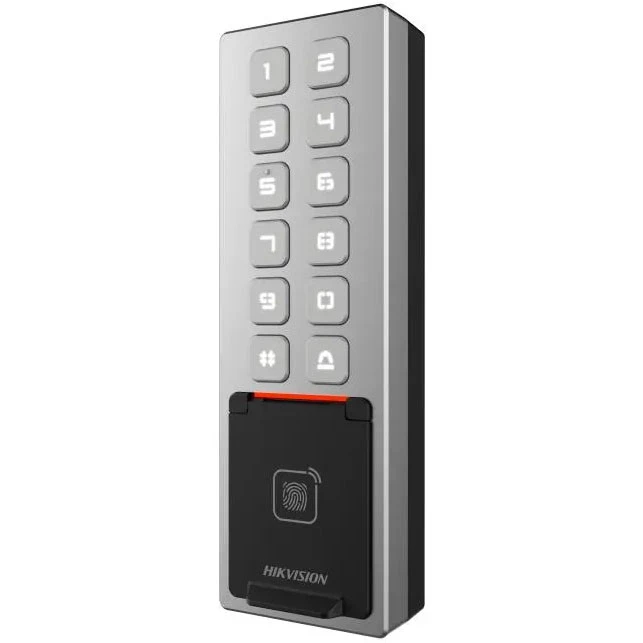

The Hikvision DS-K1T805MBWX is a sleek proximity card reader combined with a numeric keyboard, designed for user-friendly and highly secure door entry systems. Part of Hikvision’s access control portfolio, this unit supports M1 card reading (13.56 MHz), PIN code entry, and seamless integration via RS-485 communication—making it a versatile component for comprehensive security systems.
This device doesn’t just offer access—it provides flexibility in how that access is granted and managed.
Key Features and Specifications
Let’s unpack the capabilities that make this device stand out:
Proximity Card Reader (M1 Compatible)
The device supports M1 (13.56 MHz) contactless cards, one of the most widely used RFID standards globally. These cards are known for quick authentication, durability, and wide compatibility. With the DS-K1T805MBWX, users can tap to access secure areas in seconds.
Integrated Keyboard for PIN Entry
What sets this unit apart from many competitors is the built-in numeric keyboard. This allows for dual-mode authentication (card + PIN), enhancing security—especially for sensitive areas or high-traffic access points.
PIN codes can be managed through centralized software, allowing administrators to modify access permissions or reset codes with minimal effort.
RS-485 Communication Protocol
The DS-K1T805MBWX connects to access control panels or networked systems using the RS-485 protocol, a highly reliable industrial standard known for long-distance communication and minimal signal interference. This makes the device ideal for larger installations across extended premises.
RS-485 also supports encrypted communication, improving the integrity of access data.
Waterproof and Vandal-Resistant Design
Constructed with an IP65-rated enclosure, the device is weather-resistant and suitable for both indoor and outdoor installations. The rugged housing helps it withstand dust, rain, and even attempted vandalism—ensuring reliable performance in diverse environments.
LED and Buzzer Indicators
User interaction is guided by multicolor LED indicators and an integrated buzzer. Green lights typically indicate successful access, while red alerts unauthorized entry attempts. The buzzer reinforces these visual cues for users with limited visibility.
Shop Hikvision DS-K1T805MBWX Proximity Reader with Keyboard
Compact Design with Maximum Efficiency
Despite its robust capabilities, the DS-K1T805MBWX maintains a compact footprint, making it easy to install in constrained spaces like wall-mounted door frames or narrow entryways. The slimline design complements modern architectural aesthetics and blends seamlessly into professional or residential setups.
Its minimalistic appearance hides powerful internal hardware that processes card reads and PIN inputs almost instantly.
How It Enhances Building Security
Multi-Level Authentication
Using both a proximity card and PIN entry boosts security by ensuring that possession of a card alone doesn’t guarantee access. For high-risk areas, this dual-authentication setup is crucial.
Centralized Access Management
When paired with a compatible Hikvision access controller and management software (like iVMS-4200 or HikCentral), administrators can:
- Add or revoke user access
- Schedule entry windows
- View access logs and alerts
- Assign roles or permission levels
This ecosystem makes it easier to scale access control across multiple floors or facilities.
Real-Time Monitoring and Alerts
Thanks to RS-485 communication, any attempted unauthorized access or malfunction can be reported in real time to the central monitoring system, enhancing security awareness and incident response.
Shop Hikvision DS-K1T805MBWX Proximity Reader with Keyboard
Real-World Applications of the DS-K1T805MBWX
Corporate Offices
For office environments, the reader helps regulate employee access, keeping sensitive departments restricted to authorized personnel only. The keypad adds an extra layer of identity verification during off-hours.
Apartment Buildings and Condominiums
Property managers use the device to grant residents access to main entries or utility rooms while giving cleaners and service providers temporary PIN codes.
Warehouses and Factories
Harsh environments demand rugged hardware. With its IP65 rating, the DS-K1T805MBWX performs reliably at warehouse gates or plant access points exposed to dust or rain.
Educational Institutions
Schools and universities can deploy it to limit access to computer labs, libraries, or faculty rooms—using either M1 cards issued to students or numeric codes for staff.
Installation and Integration
Wiring and Mounting
Mounting is straightforward with a wall bracket and back box provided. Wiring typically includes:
- RS-485 connection to the access controller
- 12V DC power supply
- Ground and signal shielding for RS-485 (to minimize noise)
Installers can set address IDs for multiple readers using DIP switches or software configuration.
Compatible Controllers
The DS-K1T805MBWX integrates well with Hikvision controllers such as DS-K2800 or hybrid DVR/NVR systems with access control capability. Third-party controllers supporting RS-485 may also work, though Hikvision recommends using native equipment for full feature compatibility.
Shop Hikvision DS-K1T805MBWX Proximity Reader with Keyboard
Comparing It to Similar Products
While there are many proximity readers on the market, few offer the same combination of:
- M1 compatibility
- PIN code keyboard
- RS-485 communication
- Weatherproof casing
Many lower-cost models offer only card reading or lack the RS-485 protocol, which limits centralized management and real-time functionality. Some models are not weather-sealed, which makes them less suitable for outdoor use.
In contrast, Hikvision DS-K1T805MBWX strikes a balance between cost, durability, and functionality—making it a reliable middle-ground solution.
Pros and Cons at a Glance
Pros:
- Dual-authentication (card + PIN)
- Weatherproof (IP65)
- RS-485 for secure, long-range communication
- Seamless integration with Hikvision ecosystem
- Compact and sleek design
Cons:
- Requires RS-485 controller (not standalone)
- No biometric capabilities (no fingerprint or face recognition)
- Configuration might require technical expertise for integration
Shop Hikvision DS-K1T805MBWX Proximity Reader with Keyboard
Ideal Pairings and Expansion Options
To get the most out of the DS-K1T805MBWX, consider pairing it with:
- DS-K2800 series controllers – for multi-door access control
- HikCentral Professional – for enterprise-level monitoring and user management
- Hikvision M1 smart cards – for high compatibility and security
- Electric door locks – compatible with signal outputs from the access controller
If you’re looking to build a scalable system, multiple units of this model can be deployed throughout a property and centrally managed—ideal for multi-tenant offices or distributed access control networks.
Conclusion
If you’re seeking a reliable, cost-effective, and secure way to manage physical access to buildings or rooms, the Hikvision DS-K1T805MBWX Proximity Reader with Keyboard is an excellent choice.
It’s particularly suitable for:
- Facility managers upgrading from basic card-only systems
- IT teams building secure RS-485 networks
- Contractors deploying rugged, outdoor-rated readers
- Anyone who needs a modern access control system without biometric complexity
Its strong blend of convenience, performance, and durability ensures a long-term return on investment.
Shop Hikvision DS-K1T805MBWX Proximity Reader with Keyboard
FAQs
- What kind of cards work with the Hikvision DS-K1T805MBWX?
It supports 13.56 MHz M1 contactless smart cards (ISO14443-A), widely used in professional access control. - Can I use this reader as a standalone device?
No. The DS-K1T805MBWX requires an external access control panel with RS-485 support for full functionality. - Is it suitable for outdoor use?
Yes. With its IP65 rating, this reader is waterproof and dustproof—ideal for exterior installations. - Does it support biometric features like fingerprint scanning?
No. This model uses proximity cards and keypad PIN entry only. For biometric access, Hikvision offers other models with fingerprint or facial recognition. - How is this reader powered?
It uses a standard 12V DC power supply and connects via RS-485 to controllers. - Can multiple readers be installed on one system?
Absolutely. The RS-485 bus allows multiple readers to be connected to a single controller, with each reader assigned a unique ID. - Does it integrate with video surveillance systems?
Yes, particularly within the Hikvision ecosystem. Events can be linked with cameras for visual verification. - Can I assign temporary access codes?
Yes, if managed through access control software, administrators can set expiration dates or time ranges for specific PINs or cards.
